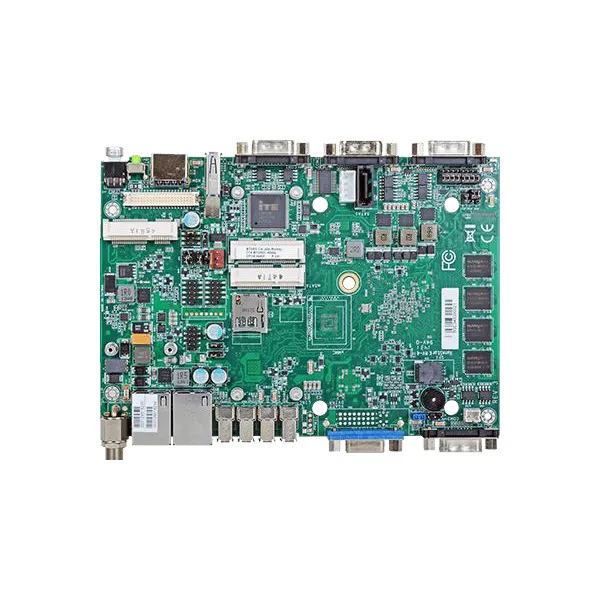

4 Inches SBC board BT253
Intel Atom® Processor E3800 4" SBC, 2GB/4GB DDR3L ECC memory down, 1 VGA, 1 LVDS, 1 HDMI, Expansion: 3 Mini PCIe, Rich I/O: 2 Intel GbE, 6 COM, 1 USB 3.0, 5 USB 2.0, 15-Year CPU Life Cycle Support
4 Inches SBC board BT253 Characteristics:
Processor
Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel Atom® E3825, Dual Core, 1M Cache, 1.33GHz, 6W
Intel® Celeron® N2807, Dual Core, 1M Cache, 1.58GHz (2.16GHz), 4.3W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
Memory 2GB/4GB DDR3L ECC memory down (-E45/-E25)
2GB/4GB DDR3L memory down (-J00/-N07)
Single channel DDR3L 1333MHz (-E45/-J00/-N07)
Single channel DDR3L 1066MHz (-E25)
BIOS AMI SPI 64Mbit
Interface 3 x Mini PCIe
1 x SIM
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
Temperature Operating
: 0°C to 60°C - Atom, Celeron (Fanless)
: 0°C to 85°C - Celeron (Fanless)
: -20°C to 85°C - Atom (Fanless)
Storage: -40°C to 85°C
