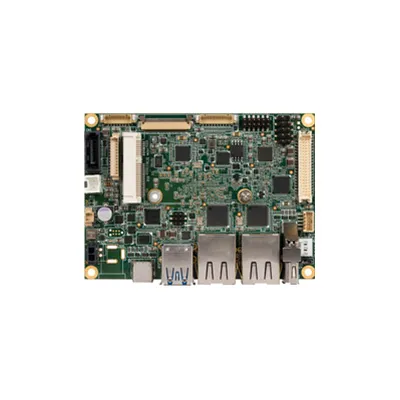

Pico ITX Single Board Computer PA5

Pico ITX Single Board Computer PA5

Pico ITX Single Board Computer PA5 Intel® is the 5th Gen. Atom™, Celeron® and Pentium® Processors, Compact design for size-sensitive devices in harsh environments,Low Power CPUs 6 to 12 Watt TDP, Enhanced Intel HD Graphics Generation 9, Long life components for 24/7 embedded use, Extended Temperature variants.

Features:


  • Form factor: Pico ITX
  • DRAM: up to 4 Channels onboard LPDDR4 (V1.1) with up to 2400 MT/s | max. 8 GB
  • Sound: High Definition Audio Interface with Cirrus CS4207
  • Temperature: Commercial: Operating: 0 to +60°C Storage: -20 to +80°C
  • Industrial: Operating: -40 to +85°C Storage: -40 to +85°C
  • Size: 100 x 72 mm (3.9” x 2,8”)
  • Chipset: Integrated in SoC
  • Security: The conga-IA3 can be optionally equipped with a discrete ”Trusted Platform Module” (TPM).
  • Ethernet: 2x LAN Gbit / 100 Mbit / 10 Mbit | Intel Gigabit Ethernet i211 controller (i210 for industrial temperature
