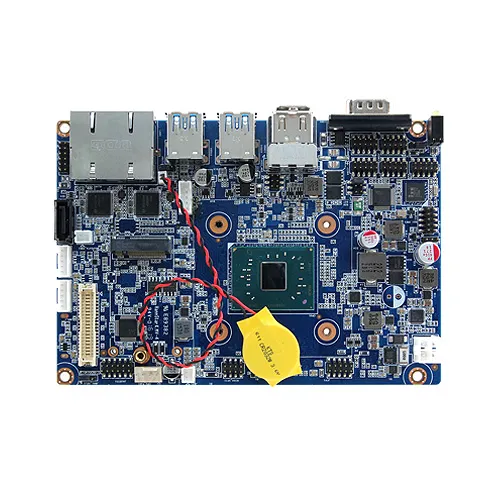

Embedded Single Board Computer - ECM-APL

Embedded single board computer – ECM-APL consists of onboard  Intel® Pentium®/Celeron® /Atom™ SoC BGA Processor and  1 x 204-Pin DDR3L 1866MHz SO-DIMM, supports 4G/8G & up to 8GB DDR3L 1866MTs SDRAM (Non-ECC). This industrial motherboard has triple display (Dual HDMI, LVDS).

Features of Embedded single board computer – ECM-APL:


• 1 x SATA III,4 x USB3.0 ,1 xUSB2.0, 6 COM ,1x Mini-PCIe,1x M.2, 8-bit GPIO
• +12 ~ 26V Wide Power Range
• TPM 2.0 (Optional)
• Support Wide temp.-40~+85 degrees (Optional)

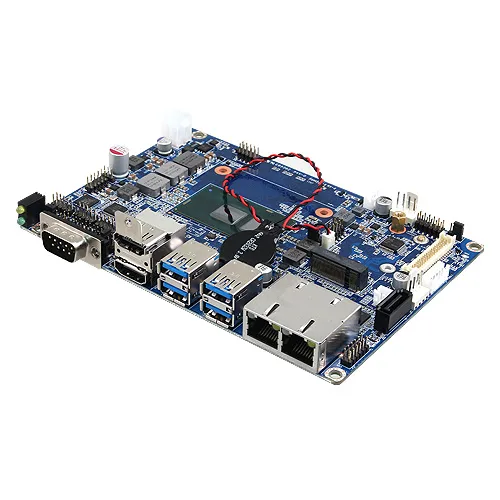

Embedded Single Board Computer ECM-SKLU

Embedded Single board computer ECM-SKLU comprises of Onboard 6th Gen Intel®Core ™  i7/i5/i3 BGA Processor, one 260-pin DDR4 SODIMM Socket, Supports Up to 16GB DDR4 2133 SDRAM (only support non-ECC). It has Dual HDMI, dual channel, and triple display.

Characteristics:


• 1 SATA III, 1 Mini PCIe, 1 M.2 ,4 USB 3.0 (compatible with USB 2.0), 2 USB 2.0, 6 COM, 8-bit GPIO
• HD Audio, Dual Gigabit Ethernet
• TPM 2.0/1.2 (Both optional)
• I/O Chip EC ITE IT8528E
• BIOS MI uEFI BIOS, 128Mbit SPI Flash ROM
• Watchdog Timer H/W Reset, 1sec. ~ 65535sec.
