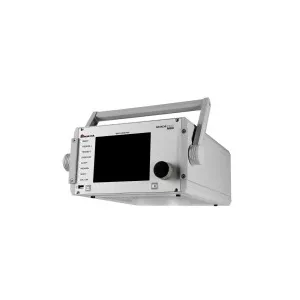

MG3 Series - Weld Monitoring and Control

The MG3 represents the very latest technology in resistance weld monitoring; it provides precision real-time dynamic measurement of all the welding variables. A special version was made available for the AWS3 and has a variety of functionalities which are described in the Technical Data Sheet of AWS3. The following description as well as the Technical Data Sheet which can be downloaded in ""More Information"" apply to the MG3 product.

With increased emphasis on accountability, the MG3 Digital Weld Monitor offers the tools required for process development, production monitoring, data collection, and analysis to support your ISO, GMP and TQM requirements.

Features:

• Two Independent Measurement Channels
• Oscilloscope Functions with Zoom and Cursor Modes
• Full On-screen SPC Capability
• Integrated clock and Date for Weld Reporting and Traceability
• Up to 99 Schedules with Password Protection
• Multiple Language Capability
